Sale!

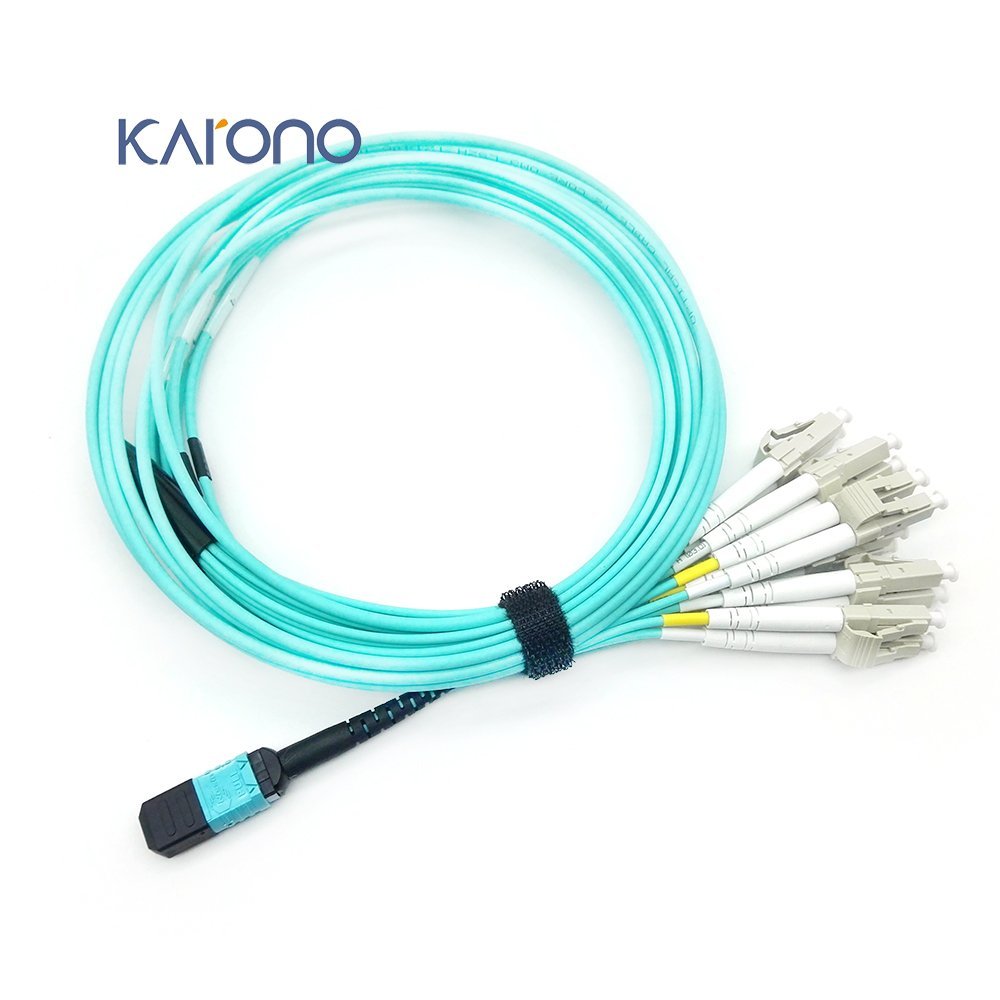

10ft MPO/MTP to 12 x LC (6 Duplex), 10-40Gb OM3 Multimode Fan-out Fiber Optic Cable – Aqua, Type-B (3M)

(1 customer review)

$47.99

  • This 3 meter (10ft) high-quality MPO to 12x LC(6 Duplex) Fanout/breakout Cable, MPO Connector Female without PIN.
  • MMF(50/125um), OM3 10G standard, LSZH -12 Core Fiber
  • Jacketed with compounds that emit limited smoke and no halogen when exposed to high heat sources(Low-smoke-zero-halogen Rated).
  • Insertion loss: 35dB, Insert- pull test: 500times<0.5 dB.
  • For QSFP+ Transceivers Link, Contact us for OEM or Custom.
  •  Contact us for OEM customize and T/T payment;

Quantity Price
1 - 4 $47.99
5 - 9 $45.99
10 - 19 $43.99
20+ $40.99
SKU: 12ML3 Categories: , Tag:

Description

Overview:

This MPO breakout/fan-out fiber cable is ready for deployment in any multimode 50/125 MTP/MPO network. OM3 is fully backward-compatible with existing OM2 or OM1 systems. This multimode, MPO fiber cable is comprised of 12 fibers or 6 duplex channels within each connector. These high density cables are perfect when you have limited space, making it possible to run a single cable that automatically terminates 12 fibers in one easy plug-in. The fan-out side has 12 LC connectors that are numbered according to the fiber position in the MPO Connector and duplexed together. The push-pull release mechanism for the MPO connector is easy to engage and disengage, its latch design also prevents the plug from snagging when jumper cables are being routed.

Product Specifications



Connector AMPO/MTPConnector B12 x LC
Fiber ModeOM3 50/125μmWavelength850/1300nm
40/100G Ethernet Distance100m at 850nm10G Ethernet Distance300m at 850nm
Multi-mode ClassOM3Minimum Bend Radius7.5mm
Trunk Diameter3.0mm-10.0mmBreakout Leg2.0/0.9mm
MTP Connector IL0.35dBLC Connector IL≤0.2dB
MTP Connector RL≥20dBLC Connector RL≥30dB

Free Shipping Methods：

Preparation for shipping normally takes 1-2 Business days after payment.
Ship to US: Amazon logistics(FBA) support;
Ship outside the US: Multiple Delivery Options，2-8 Business days;

Additional information

Lengths

Buy It at Amazon

1 review for 10ft MPO/MTP to 12 x LC (6 Duplex), 10-40Gb OM3 Multimode Fan-out Fiber Optic Cable – Aqua, Type-B (3M)

    Dennis Zografos
    July 18, 2019
    I've been using this cable (10m length) continuously for over two years. Seems well-built. No issues hitting full 40GbE as expected. I've had no compatibility issues with Finisar QSFP+ transceivers, in both Mellanox (ConnectX-3 series) and Chelsio (T5 series) cards. I'm here buying another one, and they've gone down in price :)
